Foot Pads
Ensure safe support for your equipment in all ground conditions...
URCAN Foot Pads will provide a safe working condition for the equipment when used.
Our pads combine strength and durability. We operate with a global dealer network distributing our product worldwide.
APPROVED QUALITY
Manufactured from high-performance polyethylene designed to provide maximum support for the most challenging lifting applications. We only use raw materials, not recycled materials.
QUICK AND EASY INSTALLATION

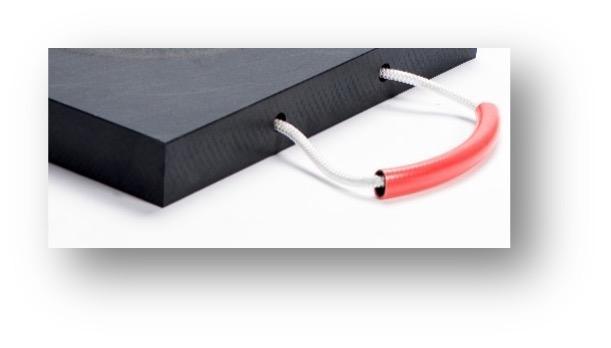

URCAN foot pads can be easily transported to any construction site. Transportation, lifting, and installation are very simple. Each of our pads is equipped with handles to increase flexibility.
SAFE WORKING

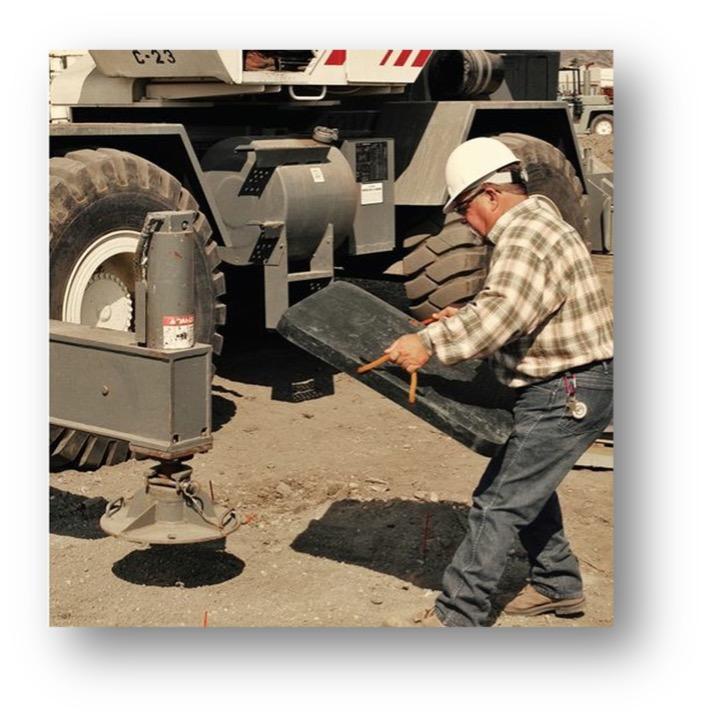

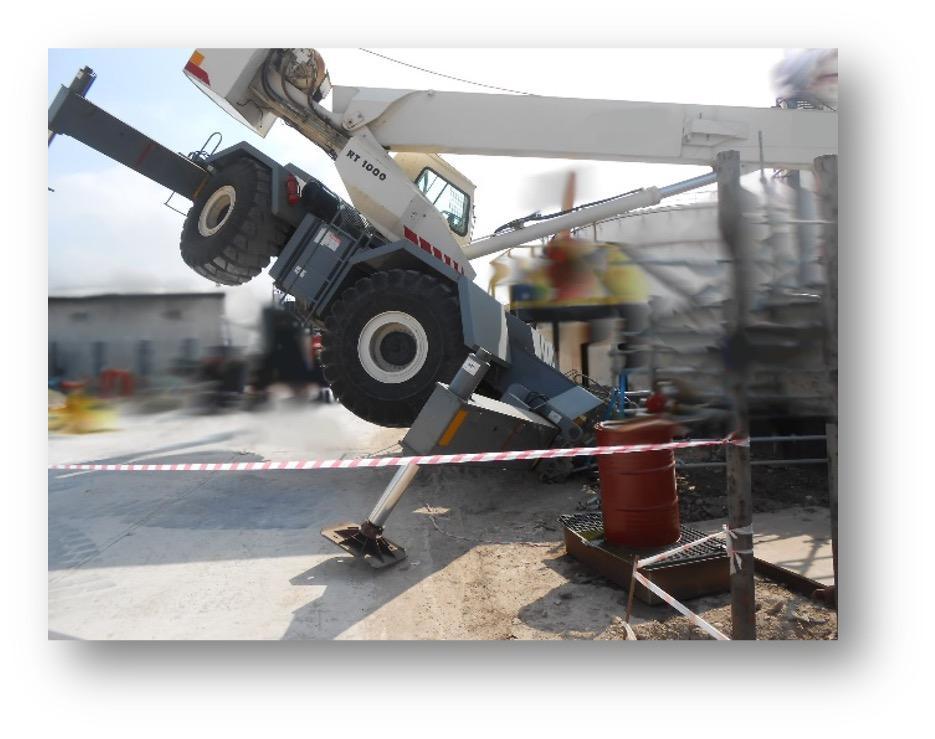

It can be challenging to know if the ground under your equipment supports the weight and pressure under your leveling feet. This is a critical question for safe crane installation by operators. As a result of this need, you can use URCAN Foot pads to provide the necessary foundational support for maximum equipment safety.
"It's all about safety"
USER-FRIENDLY
Environmentally friendly, eco-friendly, lightweight, easy to carry, high durability and flexibility, waterproof and water-resistant, does not rust like steel, does not rot like wood.
APPLICATIONS
.png)
Mobile cranes, truck cranes, AWP, platforms, scissor lifts, telescopic handlers, concrete pumps, hydraulic jacks, tower cranes, caravans.
DIMENSIONS
SQUARE PADS
|
Part Number |
Size |
KG |
Capacity (T) |
Handle |
|
PT30.4 |
300 x 300 x 30 |
2,5 |
4 |
1 |
|
PT30.8 |
400 x 400 x 30 |
4,5 |
8 |
1 |
|
PT40.10 |
400 x 400 x 40 |
6 |
10 |
1 |
|
PT50.12 |
400 x 400 x 50 |
7,5 |
12 |
1 |
|
PT60.15 |
400 x 400 x 60 |
9 |
15 |
1 |
|
PT40.15 |
500 x 500 x 40 |
9 |
15 |
1 |
|
PT50.15 |
500 x 500 x 50 |
12 |
15 |
1 |
|
PT60.20 |
500 x 500 x 60 |
14 |
20 |
1 |
|
PT40.10 |
600 x 300 x 40 |
7 |
10 |
1 |
|
PT60.12 |
600 x 300 x 60 |
10 |
12 |
1 |
|
PT40.20 |
600 x 600 x 40 |
14 |
20 |
1 |
|
PT50.23 |
600 x 600 x 50 |
17 |
23 |
1 |
|
PT60.25 |
600 x 600 x 60 |
20 |
25 |
1 |
|
PT40.25 |
800 x 800 x 40 |
25 |
25 |
2 |
|
PT50.30 |
800 x 800 x 50 |
31 |
30 |
2 |
|
PT60.35 |
800 x 800 x 60 |
37 |
35 |
2 |
|
PT50.40 |
1000 x 1000 x 50 |
49 |
40 |
2 |
|
PT60.50 |
1000 x 1000 x 60 |
58 |
50 |
2 |
|
PT80.70 |
1000 x 1000 x 80 |
78 |
70 |
2 |
|
PT60.80 |
1200 x 1200 x 60 |
84 |
80 |
2 |
|
PT80.90 |
1200 x 1200 x 80 |
113 |
90 |
2 |
|
PT100.110 |
1200 x 1200 x 100 |
137 |
110 |
2 |
|
PT120.130 |
1500 x 1500 x 120 |
257 |
130 |
4 |
|
PT150.160 |
1500 x 1500 x 150 |
321 |
160 |
4 |
|
PT150.200 |
2000 x 2000 x 150 |
570 |
200 |
4 |
ROUND PADS
|
Parça No |
Ebat |
KG |
Kapasiye (T) |
Tutacak |
|
PTR60.30 |
800 x 60 |
30 |
30 |
2 |
|
PTR60.35 |
900 x 60 |
37 |
35 |
2 |
|
PTR50.35 |
1000 x 50 |
37 |
35 |
2 |
|
PTR60.40 |
1000 x 60 |
46 |
40 |
2 |
|
PTR80.50 |
1000 x 80 |
61 |
50 |
2 |
|
PTR60.50 |
1200 x 60 |
66 |
50 |
2 |
|
PTR80.80 |
1200 x 80 |
88 |
80 |
2 |
|
PTR100.90 |
1200 x 100 |
110 |
90 |
2 |
