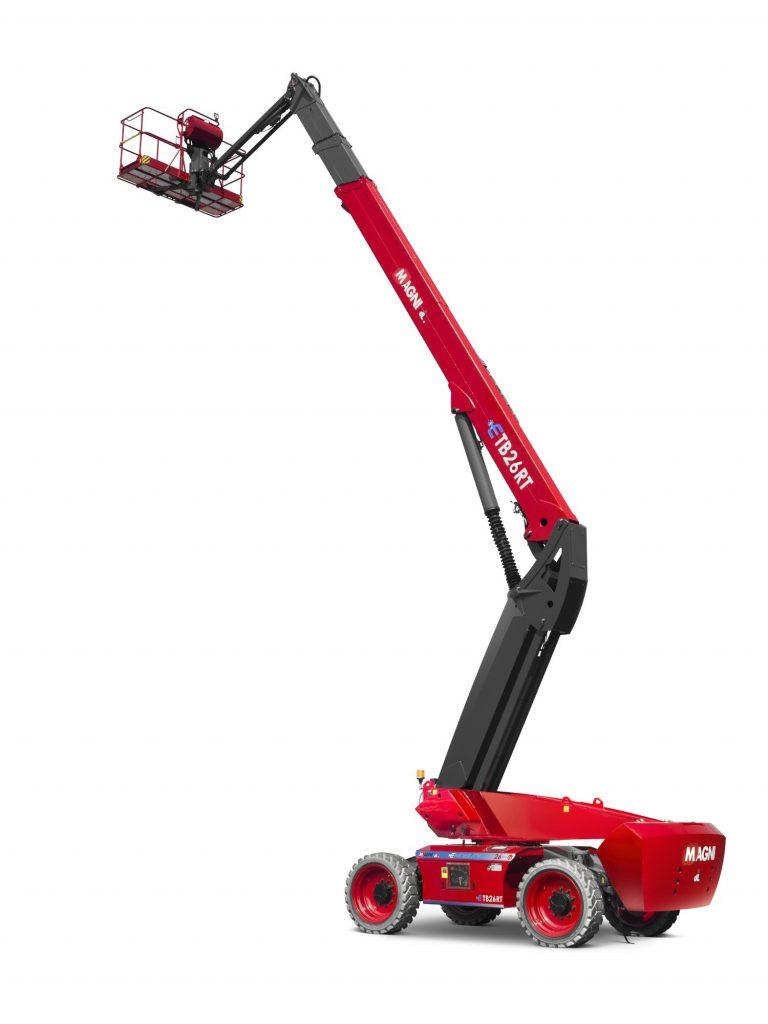

Telescopic Platforms > ETB26RT

Product Details

Max. working height: 26,30 m
Max. basket height: 24,30 m
Max. reach: 19,40 m
Max. platform load capacity: 454 kg
Max. Occupants: 3
Max. gradeability (stowed): 30%
Max. working slope: X -5° / Y -5°
Max. wind speed: 12,50 m/s
Turning radius (inside): 1,87 m
Turning radius (outside): 3,22 m
Turret rotation: 360° (continue)
Jib type: Regular
Jib length: 2,31 m
Jib vertical rotation: 135°
Basket width: 0,91 m
Basket length: 2,44 m
Basket rotation: 180°
Total weight: 16.090 kg
Travel speed (closed config.): 6 km/h
Travel speed (working config.): 1,10 km/h
Tyres: 385/45-28
Hydraulic tank capacity: 165 l
Batteries Type: Lithium Battery
Battery Capacity: 80V/420Ah
Charger type: Monophase and Three- phase 380V and 220V
Recharged time, 0 - 100% *: 5,5 hours
Driving motors: 54VAC/18kW
Emergency power system: 12V
Transmission: Hydrostatic
Platform length: 10,80 m
Platform length (transport): 7,95 m
Platform width: 2,50 m
Platform width (transport): 2,50 m
Platform height: 2,87 m
Wheelbase: 2,80 m
Tailswing: 1,61 m
Ground clearance: 0,41 m

Product Description

This telescopic platform is equipped with an integrated high capacity battery pack. As a result, it is silent and emissions free, the ideal solution for working in enclosed spaces. The platform is equipped with 4 steering drive wheels for improved stability on any surface. The boom folds for transport so that the vehicle can be shipped in a container.

STANDARD EQUIPMENT

• Modular design with high compatibility of pieces within the whole range
• Proportional controls
• Thumb rocker steering
• Flashing light
• Horn
• Hour counter
• Harsh Environment Kits
• 12V DC Auxiliary Power

PERFORMANCE

• Front oscillating axles to match the terrain irregularities granting optimal adherence to the ground
• 4 Wheels Steering
• Four-wheel drive
• Positive traction four wheel drive
• 360° rotation (continuous)
• Integral Integrated Special Drive Axle

BASKET
