Diesel Scissor Lifts > ES2825RT





Product Details

    • Capacity: 1.000 kg
    • Load Capacity when extended: 1.000 kg
    • Max no. Occupants (indoor/outdoor): 4
    • Working height: 28 m
    • Platform floor level height: 26 m
    • Overall length (with stabilizers): 5,96 m
    • Overall width: 2,50 m
    • Overall height (rails up): 4,13 m
    • Transport height (rails down): 3,19 m
    • Platform length: 5,48 m
    • Platform width: 2,45 m
    • Platform extension: 2,10 m
    • Ground clearance: 23 cm
    • Wheelbase: 4,10 m
    • Transmission: Electric
    • Turning radius (inside): 3,50 cm
    • Turning radius (outside): 6 m
    • Driving motors: 4×48V/2,0KW
    • Lifting motors: 53V/28KW
    • Travel speed (stowed): 3,50 km/h
    • Travel speed (raised): 0,40 km/h
    • Gradeability: 30%
    • Max. working slope: 2°/3°
    • Battery Capacity: 80V520AH
    • Integrated battery charger: 80V/80A
    • Diesel tank: 260 l
    • Tyres: 355/55D625
    • Weight (with outriggers): 19.700 kg
    •

Product Description

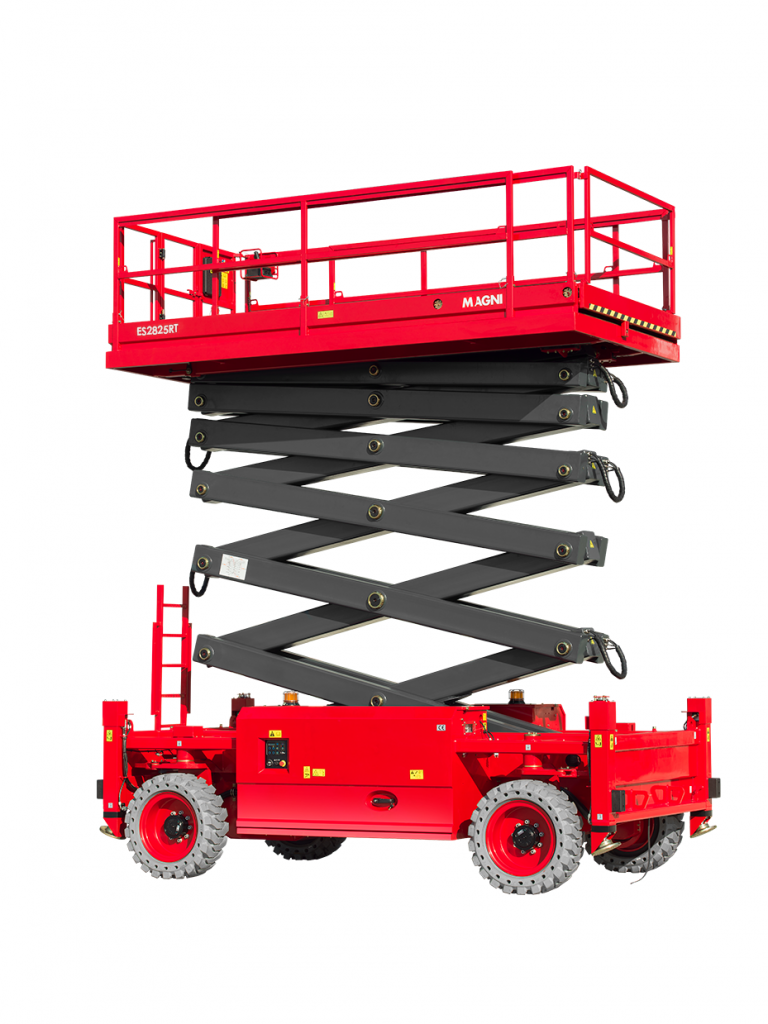

The compact size of the ES2825RT electric off-road scissor lift makes it extremely useful on sites or in tight working spaces, and it offers excellent performance on all terrain, thanks to gradeability of 30%. The ES2825RT platform is equipped as standard with a 2,1 m safety basket extension which allows the working surface area available to the operatives to be increased, improving site safety and operating comfort. Like the entire Magni range, this model is equipped with four automatic levelling hydraulic stabilisers in order to guarantee operator safety at significant heights.

Applications


Standart Equipments
