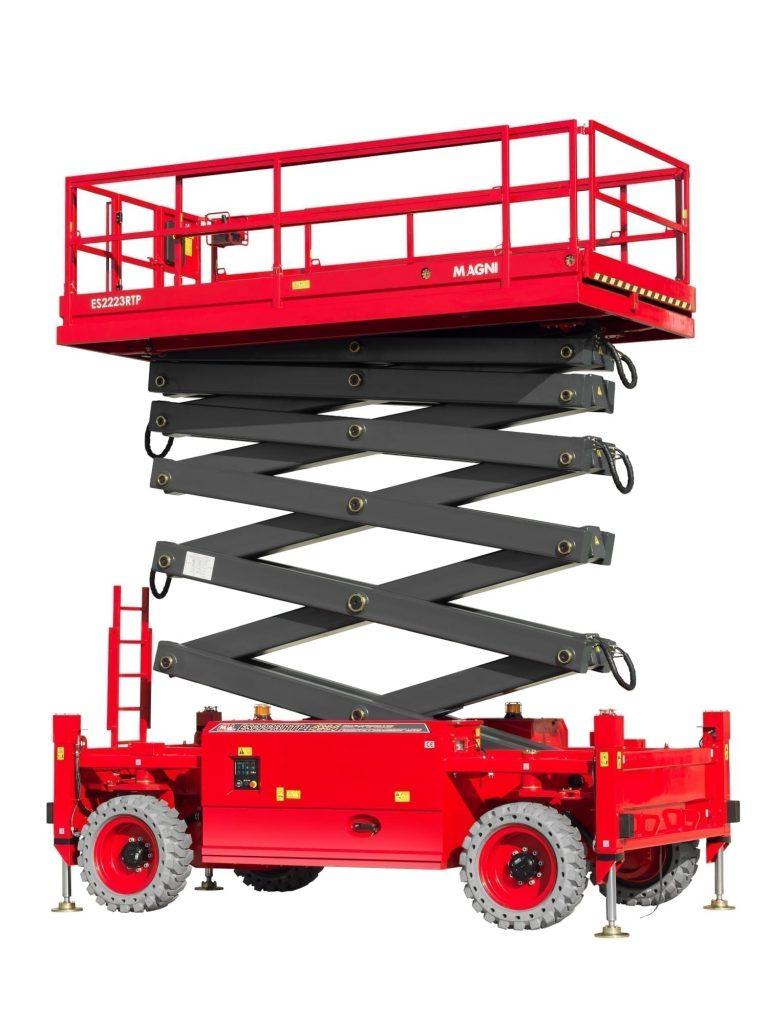

Diesel Scissor Lifts > ES2223RTP





Product Details

    • Capacity: 750 kg
    • Load Capacity when extended: 750 kg
    • Max no. Occupants (indoor/outdoor): 4
    • Working height: 22 m
    • Platform floor level height: 20 m
    • Overall length (with stabilizers): 4,95 m
    • Overall width: 2,46 m
    • Overall height (rails up): 3,86 m
    • Transport height (rails down): 3 m
    • Platform length: 4,95 m
    • Platform width: 2,25 m
    • Platform extension: 2,70 m
    • Ground clearance: 40 cm
    • Wheelbase: 3,30 m
    • Transmission: Electric
    • Turning radius (inside): 1,25 cm
    • Turning radius (outside): 3,40 m
    • Driving motors: 4AC 32V / 3,3 kW
    • Lifting motors: 2AC 48V / 8,0 kW
    • Travel speed (stowed): 5 km/h
    • Travel speed (raised): 0,40 km/h
    • Gradeability: 30%
    • Max. working slope: 2°/3°
    • Battery Capacity: 48 V / 630 Ah
    • Hydraulic tank: 150 l
    • Tyres: 36x14-20
    • Weight (with outriggers): 13.400 kg
    •

Product Description


The compact size of the ES2223RTP electric off-road scissor lift makes it extremely useful on sites or in tight working spaces, and it offers excellent performance on all terrain, thanks to gradeability of 30%. The ES2223RTP platform is equipped as standard with a 2,70 m safety basket extension which allows the working surface area available to the operatives to be increased, improving site safety and operating comfort. Like the entire Magni range, this model is equipped with four automatic levelling hydraulic stabilisers in order to guarantee operator safety at significant heights. .
