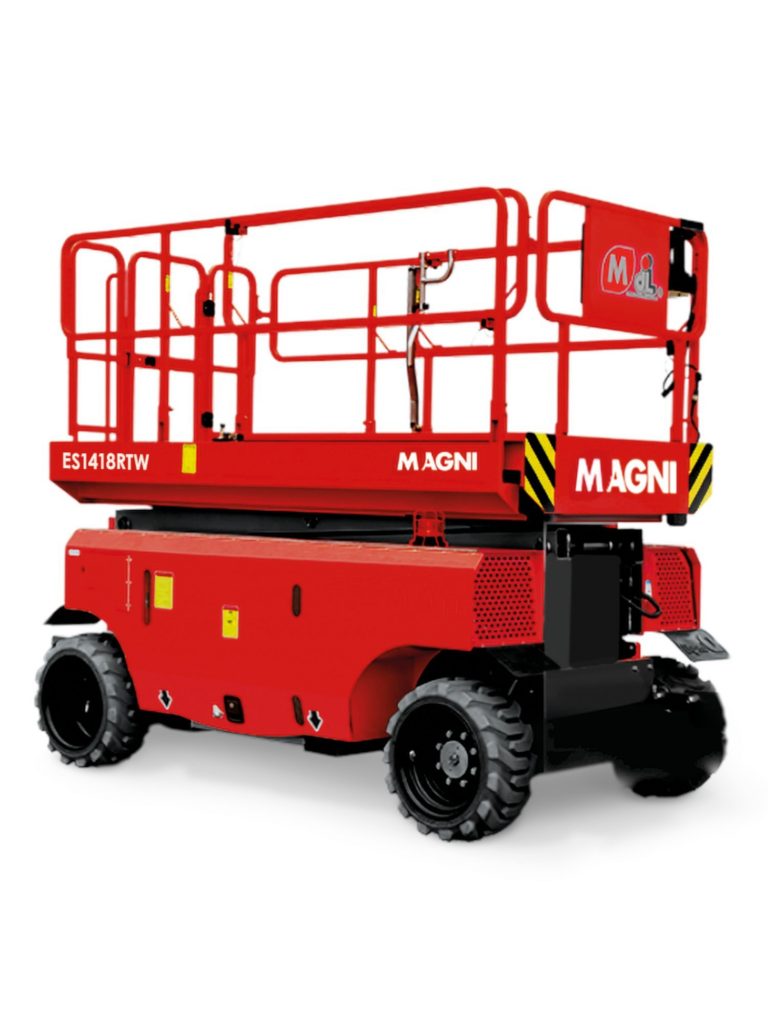

Diesel Scissor Lifts > ES1418RTW





Product Details

    • Capacity: 363 kg
    • Load Capacity when extended: 136 kg
    • Max no. Occupants (indoor/outdoor): 3
    • Working height: 14 m
    • Platform floor level height: 12 m
    • Overall length (with stabilizers): 3,84 m
    • Overall width: 1,76 m
    • Overall height (rails up): 2,74 m
    • Transport height (rails down): 1,97 m
    • Platform length: 2,88 m
    • Platform width: 1,52 m
    • Platform extension: 1,43 m
    • Ground clearance: 24 cm
    • Wheelbase: 2,29 m
    • Transmission: Electric
    • Turning radius (inside): 2,15 cm
    • Turning radius (outside): 4,85 m
    • Driving motors: 2x32 VAC / 3,3 kW
    • Lifting motors: 48 V / 3,8 kW
    • Travel speed (stowed): 6 km/h
    • Travel speed (raised): 0,48 km/h
    • Gradeability: 40%
    • Max. working slope: 1,5°/3°
    • Battery Capacity: 8x6 V / 320 Ah
    • Integrated battery charger: 48 V
    • Hydraulic tank: 71 l
    • Tyres: 26x12-16,5
    • Weight (with outriggers): 5.150 kg
    • Ask for information
    •

Product Description


The compact size of the ES1418RTW electric off-road scissor lift makes it extremely useful on sites or in tight working spaces, and it offers excellent performance on all terrain, thanks to gradeability of 40%. The ES1418RTW platform is equipped as standard with a 1,43 m safety basket extension which allows the working surface area available to the operatives to be increased, improving site safety and operating comfort.

Applications


Standart Equipments
