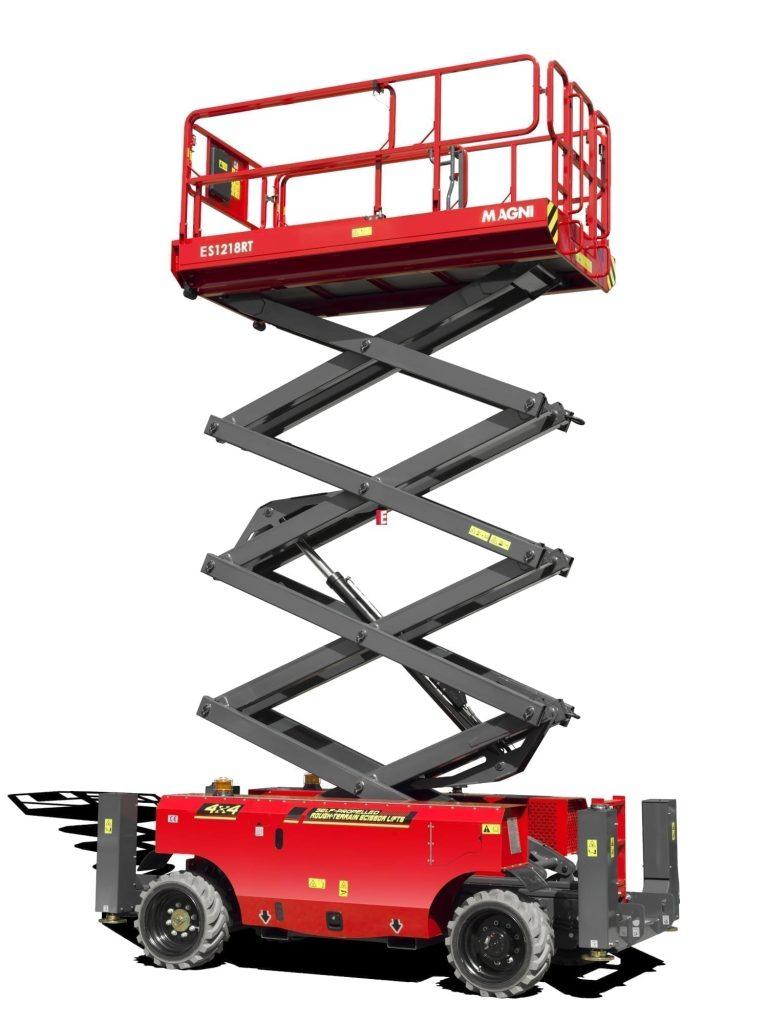

Diesel Scissor Lifts > ES1218RT





Product Details

    • Capacity: 454 kg
    • Load Capacity when extended: 136 kg
    • Max no. Occupants (indoor/outdoor): 4
    • Working height: 12 m
    • Platform floor level height: 10 m
    • Overall length (with stabilizers): 3,84 m
    • Overall width: 1,76 m
    • Overall height (rails up): 2,59 m
    • Transport height (rails down): 1,82 m
    • Platform length: 2,88 m
    • Platform width: 1,52 m
    • Platform extension: 1,43 m
    • Ground clearance: 24 cm
    • Wheelbase: 2,29 m
    • Transmission: Electric
    • Turning radius (inside): 2,15 cm
    • Turning radius (outside): 4,85 m
    • Driving motors: 2x32 VAC / 3,3 kW
    • Lifting motors: 48 V / 3,8 kW
    • Travel speed (stowed): 6 km/h
    • Travel speed (raised): 0,48 km/h
    • Gradeability: 40%
    • Max. working slope: 1,5°/3°
    • Battery Capacity: 8x6 V / 320 Ah
    • Integrated battery charger: 48 V
    • Hydraulic tank: 71 l
    • Tyres: 26x12-16,5
    • Weight (with outriggers): 4.400 kg

Product Description


The compact size of the ES1218RT electric off-road scissor lift makes it extremely useful on sites or in tight working spaces, and it offers excellent performance on all terrain, thanks to gradeability of 40%. The ES1218RT platform is equipped as standard with a 1.43 m safety basket extension which allows the working surface area available to the operatives to be increased, improving site safety and operating comfort. Like the entire Magni range, this model is equipped with four automatic levelling hydraulic stabilisers in order to guarantee operator safety at significant heights.

Applications


Standart Equipments
