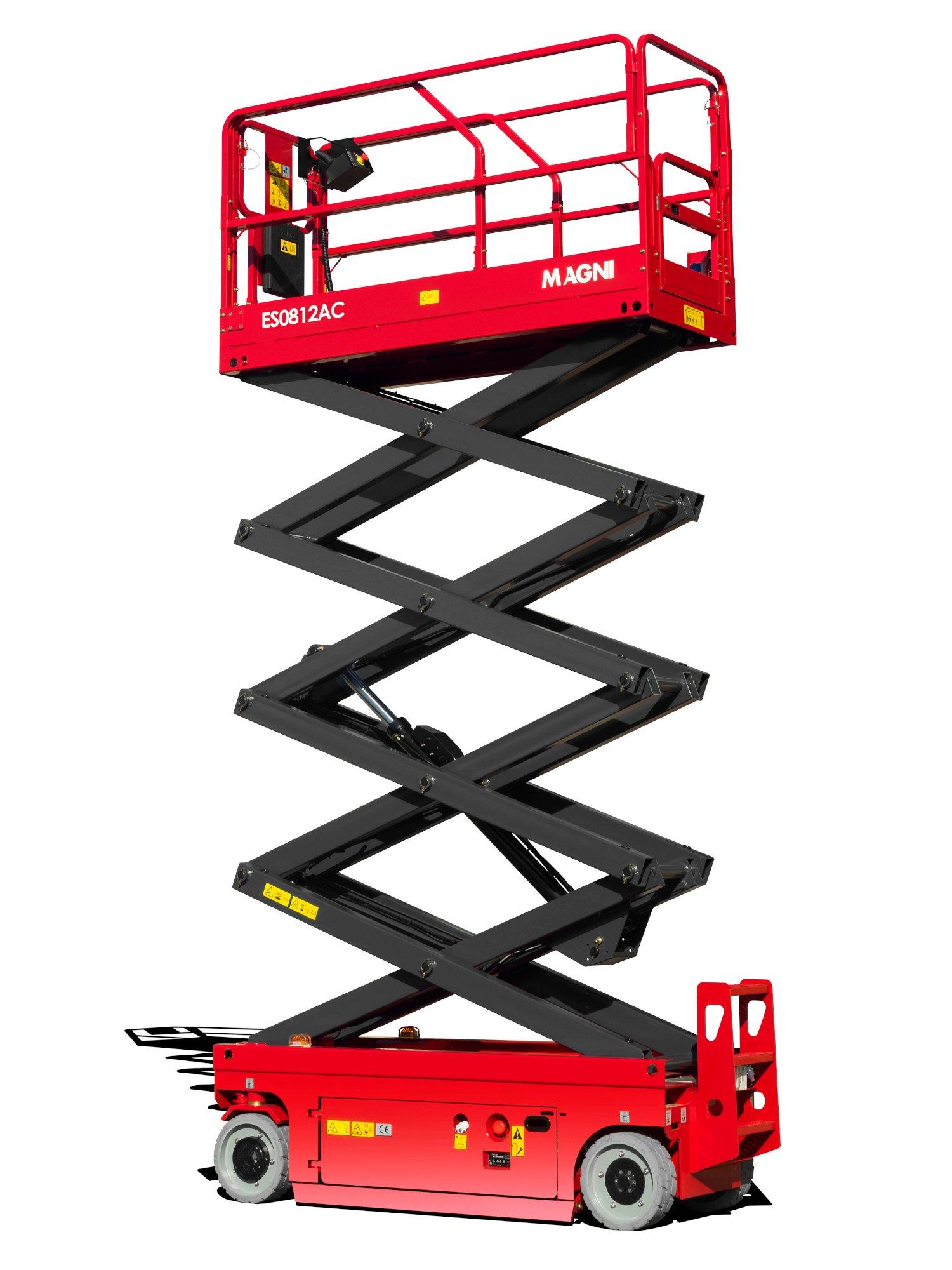

Battery Powered Scissor Lifts > ES0812AC





Product Details

    • Capacity: 540 kg
    • Load Capacity when extended: 113 kg
    • Max no. Occupants (indoor/outdoor): 2/2
    • Working height: 8 m
    • Platform floor level height: 6 m
    • Overall length: 2,48 m
    • Overall width: 1,15 m
    • Overall height (rails up): 2,23 m
    • Transport height (rails down): 1,70 m
    • Platform length: 2,27 m
    • Platform width: 1,12 m
    • Platform extension: 0,90 m
    • Ground clearance (stowed): 10 cm
    • Ground clearance (raised): 1,90 cm
    • Wheelbase: 1,87 m
    • Transmission: Electric
    • Turning radius (outside): 2,20 m
    • Driving motors: 2x24VAC/0,87 kW
    • Lifting motors: 24 VAC/3,5 kW
    • Travel speed (stowed): 5 km/h
    • Travel speed (raised): 0,80 km/h
    • Battery Capacity: 4x6 V/170 Ah
    • Integrated battery charger: 24V/30A
    • Gradeability: 25%
    • Max. working slope: 1,5°/3°
    • Non-marking tyres: 381x12
    • Weight (CE): 2.035 kg

Product Description


The ES0812AC electric scissor lift has a maximum capacity of 540kg and a working height of 8m. Due to the added extension to the working platform, a larger movement space is now possible, making activity for the operators easier and safer on the jobsite. The platform mobility has been enhanced through alternating current (AC) drive motors with steel covers to ensure a zero turning radius, offering improved performances while maneuvering in tight spaces. This energy-efficient scissor lift’s emission-free and silent operation makes it perfect for all work environments inside and out.

The AC engines reduce fuel consumption and require minimal maintenance, making them even more efficient. The simple, robust and durable structure is less subject to wear and tear. The fully sealed IP67 certified AC system ensures improved water and dust proofing.

More added features are the automatic pothole protection and a unique design of the machine closer to the ground, which increases the overall stability of the platform. Diagnostically, the ES0808E is equipped with automatic error code display for easier maintenance checks and faster service diagnostics. Furthermore, this machine is equipped with traction engine protection.

The AGM battery is the recommended one for who use many electrical appliances and tools or want high starting and power safety thanks to a very efficient battery. The advantages are
Watertight
Tilt tolerance
Vibration resistance
Safety
Maintenance free battery
Compared to the conventional starter battery, an AGM battery allows for triple charging cycles. Long life, exceptional performance and high safety make the AGM battery a top choice.

Applications


Standart Equipments
