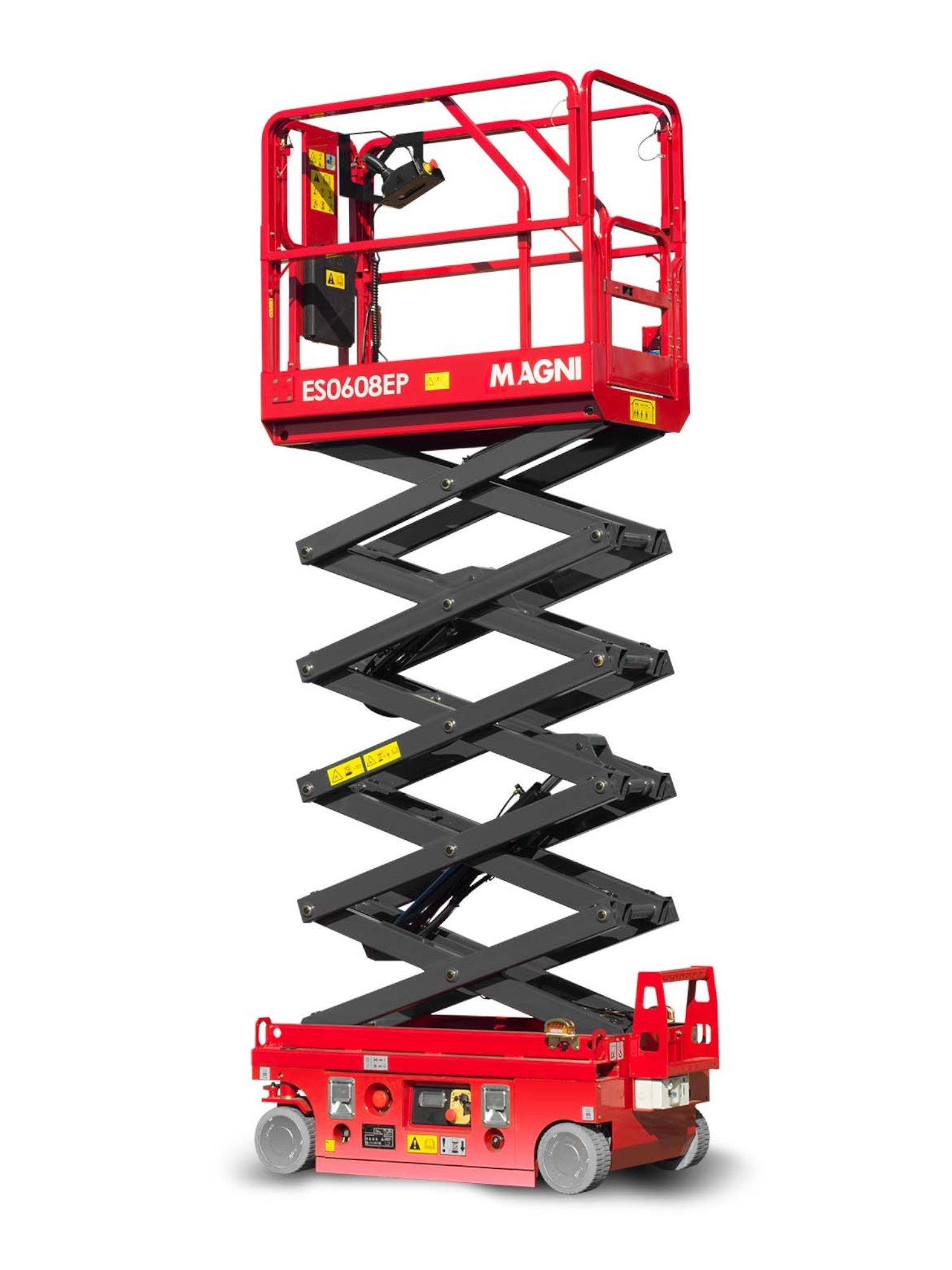

Battery Powered Scissor Lifts > ES0608EP





Product Details

    •  Capacity: 230kg
    •   Load Capacity Extended: 113 kg
    •   Max. Passengers (indoor/outdoor): 1/2
    •   Working height: 6.30 m
    •   Platform floor level height: 4.30 m
    •   Total length: 1.52 m
    •   Total width: 0.81 m
    •   Total height (rails up): 2.03 m
    •   Transport height (rails down): 1.66 m
    •   Platform length: 1.37 m
    •   Platform width: 0.70 m
    •   Platform extension: 0.60 m
    •   Ground clearance (stacked): 6 cm
    •   Ground clearance (raised): 1.50 cm
    •   Wheelbase: 1.13 m
    •   Transmission: Electric
    •   Turning radius (inside): 45 cm
    •   Turning radius (outside): 1.60 m
    •   Drive motors: 24 V/0.5 kW
    •   Lifting motors: 24 V/2.2 kW
    •   Travel speed (stacked): 4 km/h
    •   Cruising speed (raised): 0.60 km/h
    •   Battery Capacity: 2x12 V/115 Ah
    •   Integrated battery charger: 24V/15A
    •   Climbability: 25%
    •   Max. working inclination: 1.5°/3°
    •   Non-marking tires: 230x10
    •   Weight (CE): 1,040 kg

Product Description


This electric scissor lift has a maximum payload of 230 kg and a working height of 6.3 m and is suitable for all working environments. It is extremely compact with folded guardrails and allows it to easily pass through standard doors when lowered. The platform can be extended, significantly increasing the working area. The turning radius offers improved performance in tight spaces. Automatic underbody protection significantly improves the smoothness and safety of driving in the raised position. Intelligent control panel control: integration with level sensor, push button and key switch. In addition, this machine is equipped with traction motor protection.

The AGM battery is the recommended battery for those who use many electrical appliances and tools, or who want high starting and power safety thanks to a very efficient battery.

Advantages:

Waterproof

Tilt tolerance

vibration resistance

Safety

Maintenance-free battery

Compared to the traditional starter battery, an AGM battery allows for triple charge cycles. Long life, outstanding performance and high safety make the AGM battery the best choice.

Applications


Standart Equipments
