RTH - Rotary Telescopic Loaders > 10.37
Product Details
Product Description

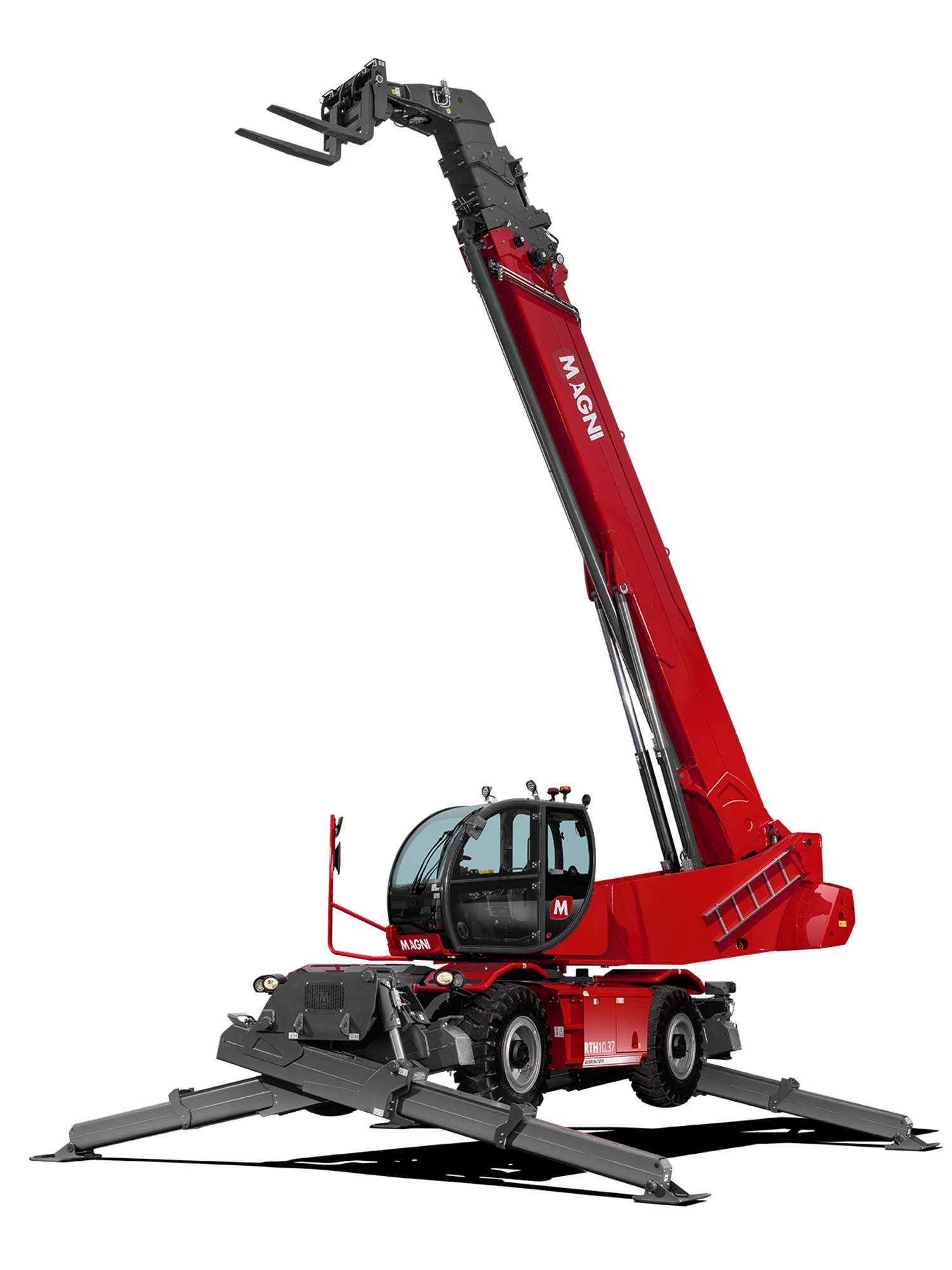

RTH 10.37 is a rotating telescopic handler, perfect for construction sites and rental fleets alike. Compact and versatile, it is compatible with a wide range of accessories thanks to the RFID system, which automatically recognizes and creates relative load charts; this telescopic handler can satisfy many different applications in construction and industry. For overload protection, the machine is equipped with rotating stabilizers with a wide contact surface and a load monitoring system, and it also offers multi-wheel steering mode.
Multidirectionality
The 10.37 is extremely versatile as it can be used as a telescopic forklift with forks, by installing a winch as an off-road screw, and using a basket as a platform. Moreover, through the RFID system, the machine recognizes attached equipment and automatically adjusts corresponding safety devices and load charts.
Safety and Visibility
The cabin with ROPS/FOPS level 2 certification provides best-in-class safety at all stages of operation.
Visibility is enhanced by increasing the glass in the upper part and installing a thinner steering column, while still maintaining legal and safe requirements.
Operator Comfort
Like all other RTH and TH models, the interior cabin is completely redesigned, and all panels are now cast for better strength and surface. Courtesy lights are installed at various points inside the cabin when the door is open. These LED lights can be dimmed and slowly fade out after the machine is turned off.
Airflows inside the cabin are improved by redesigning the lower part of the front glass to optimize defrosting even on the coldest days.
To ensure maximum comfort even on the sunniest days, a sun visor is installed above the operator's head, which can be secured in two different positions.
In the new cabin, both armrests, movable with the seat, can be stowed away, and a convenient storage compartment is provided under the right armrest. There is also a first-class seat with air suspension and headrest.
New Built-in Magni Combi Touch Screen (MCTS) Control System
The software installed on the new RTH series is completely updated and accessible through the touch screen. Redesigned graphical interfaces provide easy and intuitive use with custom icons to identify different functions.
When upgrading from the previous version, the software now includes a main menu accessible through various themed screens with new features to provide a more thematically pleasing user experience.
Key features and innovations include:
- Operating mode: Allows splitting lift and traction speeds for more precise and faster boom movement when maneuvering the machine.
- Eco-mode: Automatically reduces engine revs when reaching maximum speed during constant speed travel, reducing fuel consumption and therefore CO2 emissions.
- Custom presets: Three new presets that can be selected by the operator from most sensitive to most reactive to optimize the performance of the used attachment.
Another important innovation is the Magni LLD (Live Load Diagram) system, which provides full visibility of working limits to ensure work in overall safety, providing three different versions of load tables for display:
- Standard, showing all load zones (also present in previous versions).
- Dynamic, showing the current working range depending on the lifted load.
- 360° dynamic, providing greater accuracy when working in conditions of changing stability, displaying the available working area from above.
Finally, like all new RTH series, this model is also equipped with a standard rear-view camera, which activates automatically when engaging reverse gear and is displayed on the MCTS monitor.
