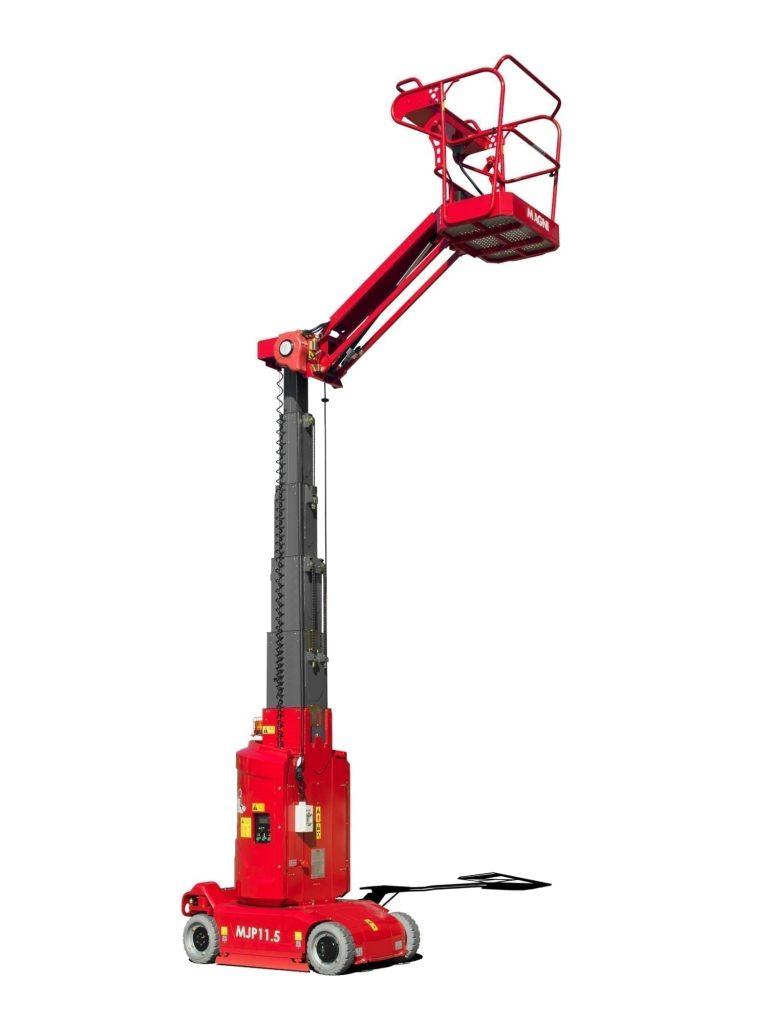

Vertical Mast Platforms > MJP 11.5





Product Details

    • Capacity: 200 kg
    • Max no. Occupants (indoor/outdoor): 2
    • Working height: 11,20 m
    • Max platform height: 9,20 m
    • Max horizontal outreach: 3 m
    • Up and over height: 7,89 m
    • Overall length: 2,72 m
    • Overall width: 1 m
    • Overall height: 1,99 m
    • Platform length: 0,62 m
    • Platform width: 0,87 m
    • Ground clearance (stowed): 0,06 m
    • Ground clearance (raised): 0,02 cm
    • Wheelbase: 1,22 m
    • Turning radius (inside): 0,23 m
    • Turning radius (outside): 1,65 m
    • Transmission: Electric
    • Turret rotation: 345°
    • Gradeability: 25%
    • Jib movement: +70°/-60°
    • Driving motors: 24 V / 1,5 kW
    • Lifting motors: 24 V / 3 kW
    • Travel speed (stowed): 4,50 km/h
    • Travel speed (rated): 0,50 km/h
    • Up/Down Speed: 95/50 sec
    • Battery Capacity: 24 V / 240 Ah
    • Integrated battery charger: 24 V / 30 A
    • Max. working slope (indoor use): 2,5°
    • Tyres: 381x127
    • Weight: 2.950 kg

Product Description


This Magni vertical mast boom lift is battery powered. It has a lightweight yet strong structure, ensuring total safety for operatives. It has a lifting capacity of 200 kg and a maximum working height of 11 m. It represents an excellent choice for maintenance work, both indoors and outdoors on stable ground. Its compact dimensions allow it to travel through doors and access tight areas. The tilting boom – plus/minus 70° – and the 345° turret rotation make it extremely versatile and manoeuvrable. This Magni vertical mast boom lift is battery powered. It has a lightweight yet strong structure, ensuring total safety for operatives. It has a lifting capacity of 200 kg and a maximum working height of 11 m. It represents an excellent choice for maintenance work, both indoors and outdoors on stable ground. Its compact dimensions allow it to travel through doors and access tight areas. The tilting boom – plus/minus 70° – and the 345° turret rotation make it extremely versatile and manoeuvrable.
