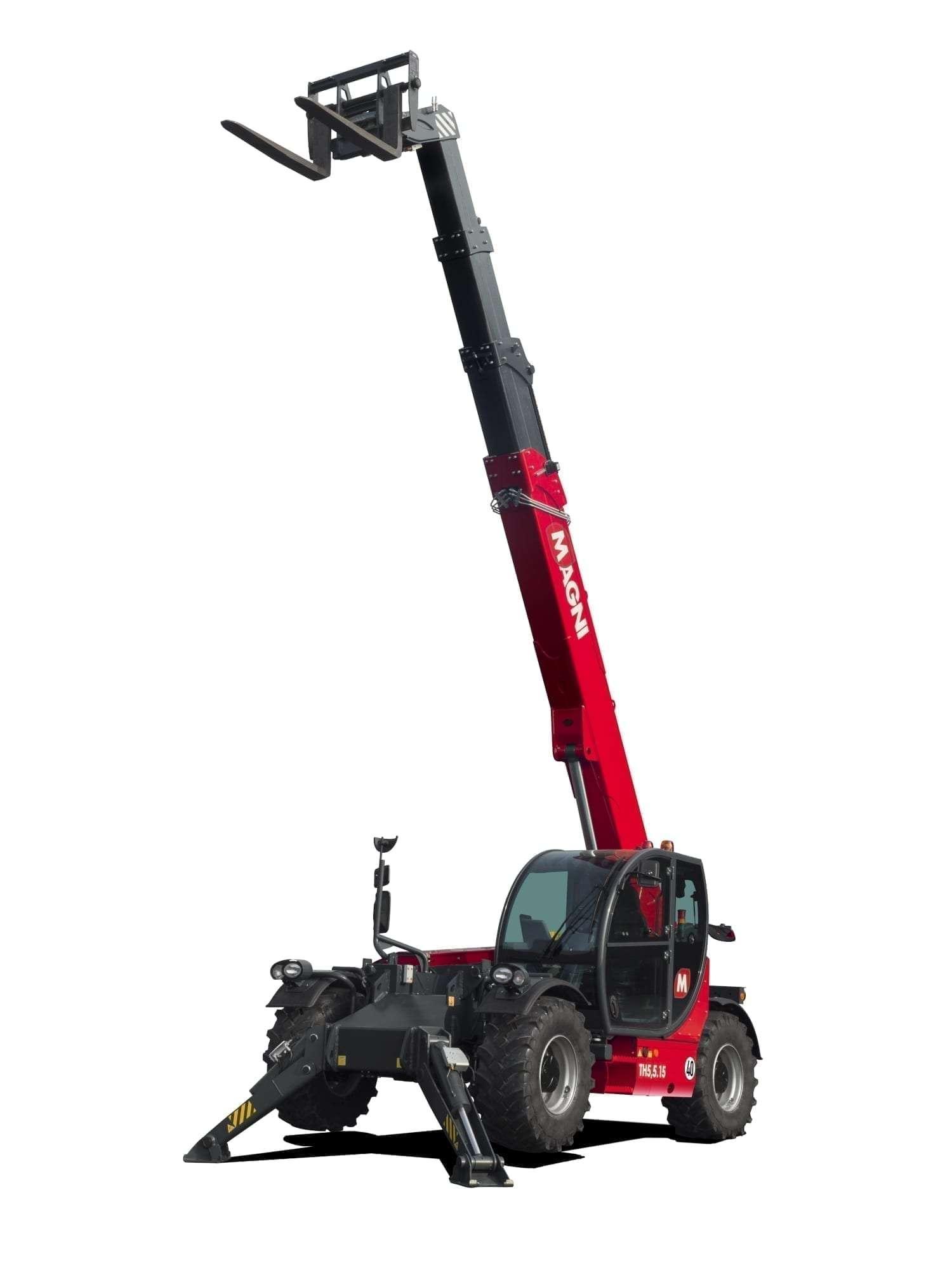

TH - Telehandler > 5,5.15

Product Details

Lifting capacity: 5.500 kg
Capacity at maximum height: 3.500 kg
Lifting height: 14,80 m
Reach: 10,40 m
Engine: Deutz TCD 3,6 L4 Stage V
Rated power: 55,40 kW (75,30 hp) 2.200 rpm
Number of gears: 2/2
Hydraulic system: 350 bar (Load Sensing)
Length: 6,39 m
Width: 2,53 m
Ground clearance: 410 mm
Unladen weight: 13.200 kg
Travel speed: 25 km/h
Climate control as standard: No
Automatic accessory recognition: Yes

Product Description

The TH 5,5.15 is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 55 kW engine, it can safely reach a height of 14.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Some features:

Lowered design for greater stability

Available with Deutz Stage V / Stage IV final / Stage IIIA engines

Standard pivoting stabilisers for optimised lifting capacities up to 5.5 tonnes

350 bar L/S hydraulic system
